Hambini Racing T45 Colnago Bottom Bracket 30mm

(2 customer reviews)

£291.00 Ex. VAT

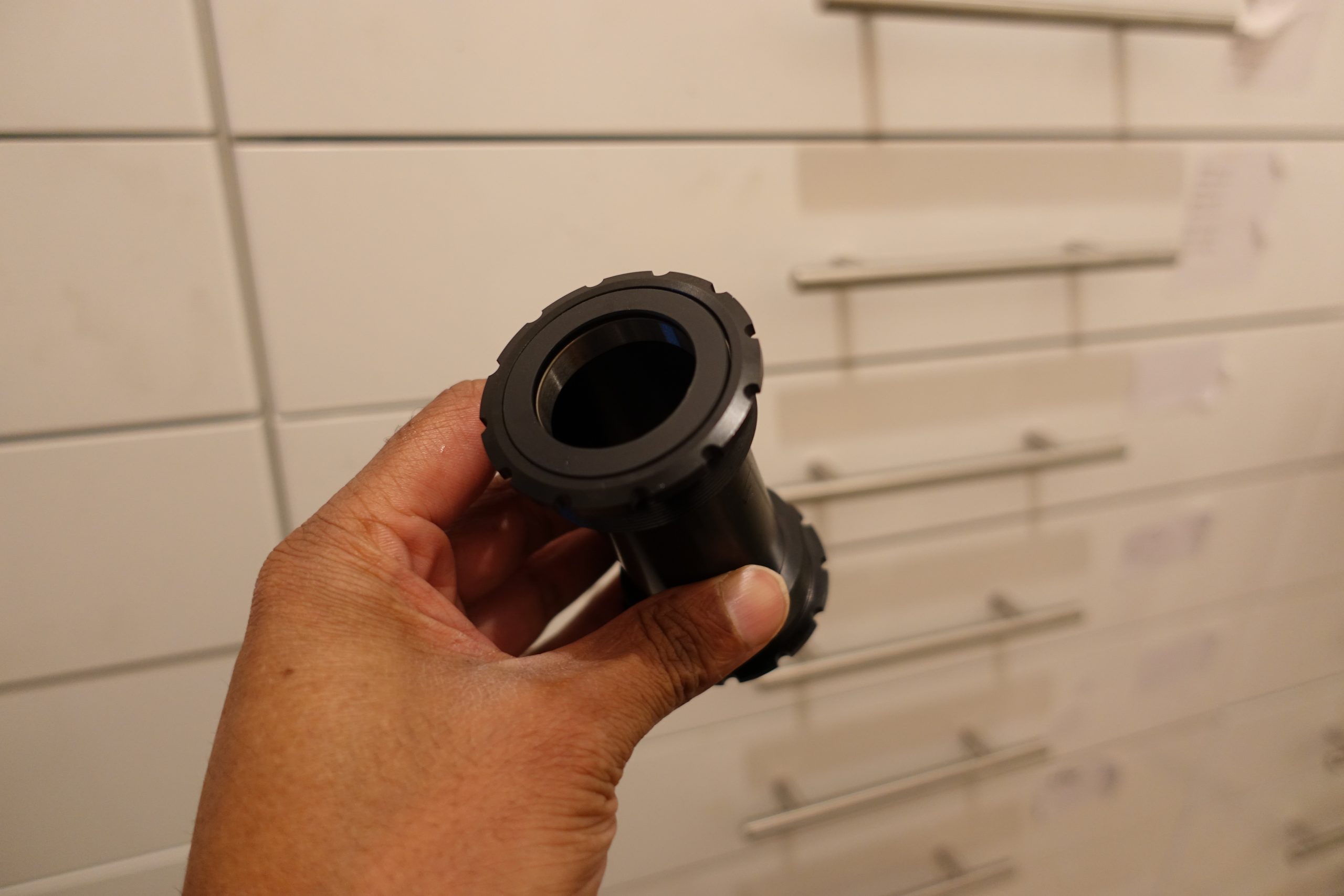

This bottom bracket is designed to interface a 30mm Long Axle (90.5mm DBCA) Crankset with a bike frame that uses a T45 Bottom Bracket (82.5mm wide). This is often called threadfit 82.5, this is almost exclusively used on Colnago bikes. The Picture is for illustration purposes

Out of stock

Join the waitlist to be emailed when this product becomes available
SKU: T45-82.5-30mm Category:

Description

This bottom bracket is designed to interface a 30mm Long Axle (90.5mm DBCA) Crankset with a bike frame that uses a T45 Bottom Bracket (82.5mm wide). This is often called threadfit 82.5, this is almost exclusively used on Colnago bikes.

  • T45 x 82.5 Threaded. 45×1.0mm
  • Drive side has a Left Hand Thread, Non Drive Side has a Right Handed Thread
  • Designed for 30mm Long Axle (>90.5mm DBCA) Cranksets. A number of brands make these including ROTOR. These are often referred to as BB30 Long Axle.
  • The drive and non drive sides are aligned via an internal male/female sleeve
  • This bottom bracket has been designed to offer easy servicing, it is not a throw away item, it has been designed to allow easy changing of bearings which are a standard part
  • Non contacting Seals
  • Tool Requirements, these are shown on the drawing in the picture gallery
    • 52mm Outside Diameter
    • 12 Notches
    • 51.7mm PCD (Pitch Circle Diameter) R25.85mm
    • 3.5mm notch diameter
  • A suitable tool is available here

Additional information

Crankset Type

Frame

Manufacturer

2 reviews for Hambini Racing T45 Colnago Bottom Bracket 30mm

  1. Julian Enticknap –

    I have this fitted on a V3RS with Rotor cranks, easy install no issues at all.

  2. Julian Enticknap –

Add a review

Your email address will not be published. Required fields are marked *

Q & A

Hello Hambini, Will this BB solution work with the BB30 Campagnolo "Over Torque" crankset models such as Comp Ultra? This crank was only made for 11 speed, (it is nothing like Ultra Torque ones with Hirth joint and pre-fitted bearings on the axles). It has a kind of regular looking 30mm axle - however the preload and fitting the non drive side crank seems a little unique. thanks & regards, Paul Paul McCutcheon asked on April 8, 2024

It will depend on the DBCA of the crankset. If it's more than 90.5mm then it will work.

 admin answered on April 8, 2024 store manager
(0) (0)
Will this fit "regular" threaded bb's? I am trying to mate an old s-works crank to a new sl7. Need a 30mm (BSA30) that builds as litte as possible outside the shell. Simen asked on October 17, 2022

This won't work with an SL7, you'd need the BSA30 https://www.hambini.com/product/hambini-racing-bsa-bottom-bracket-30mm/

 admin answered on November 2, 2022 store manager
