Hambini Racing T45 Colnago Bottom Bracket Shimano Crankset

(6 customer reviews)

£306.00 Ex. VAT

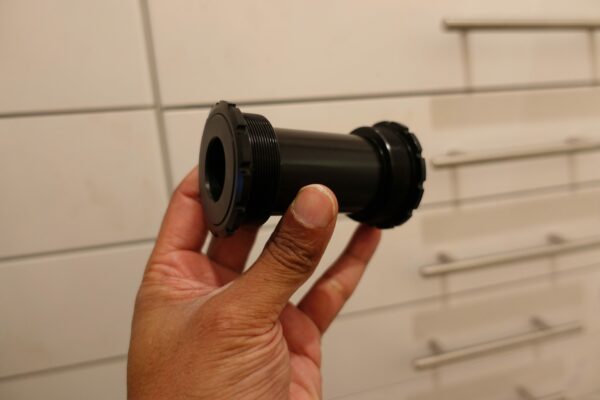

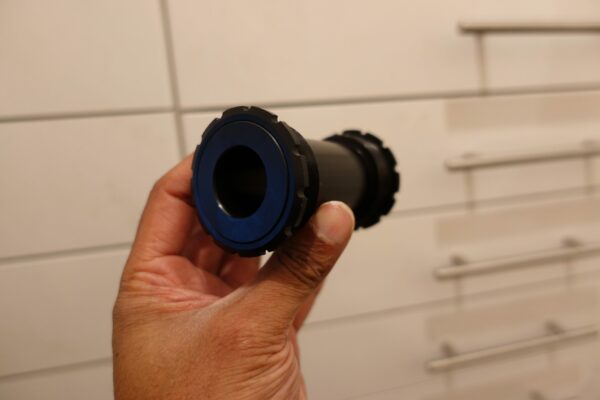

This bottom bracket is designed to interface a Shimano Hollowtech 2 (Dura Ace, Ultegra, 105 etc) or compatible crankset with a bike frame that uses a T45 Bottom Bracket (82.5mm wide). This is often called threadfit 82.5, this is almost exclusively used on Colnago bikes. Please note that newer Colnago bikes are using T47 86.5 Bottom Brackets,The Picture is for illustration purposes

Out of stock

Join the waitlist to be emailed when this product becomes available
SKU: T45-82.5-Shimano Category:

Description

This bottom bracket is designed to interface a Shimano Hollowtech 2 (Dura Ace, Ultegra, 105 etc) or compatible crankset with a bike frame that uses a T45 Bottom Bracket (82.5mm wide). This is often called threadfit 82.5, this is almost exclusively used on Colnago bikes. Please note that newer Colnago bikes are using T47 86.5 Bottom Brackets

  • T45 x 82.5 Threaded. 45×1.0mm
  • Drive side has a Left Hand Thread, Non Drive Side has a Right Handed Thread
  • Designed for Shimano Hollowtech 2 (Dura Ace, Ultegra, 105 etc) and compatible cranksets
  • The drive and non drive sides are aligned via an internal male/female sleeve
  • This bottom bracket has been designed to offer easy servicing, it is not a throw away item, it has been designed to allow easy changing of bearings which are a standard part
  • Non contacting Seals
  • Tool Requirements, these are shown on the drawing in the picture gallery
    • 52mm Outside Diameter
    • 12 Notches
    • 51.7mm PCD (Pitch Circle Diameter) R25.85mm
    • 3.5mm notch diameter
  • A suitable tool is available here
